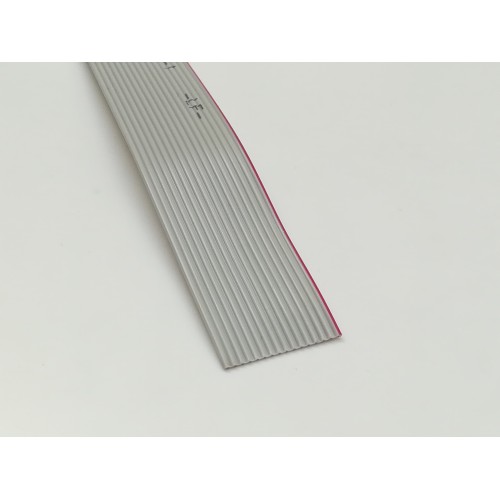

Ribbon cable 16 ways | priced per metre

Tidy wiring with ribbon cable

Dozens of separate wires between decoder and points turn every fault into a search. With ribbon cable with 16 ways you make all those connections at once, neatly bundled and easy to follow. The price is per metre, so you buy exactly the length you need.

Key features

• 16 ways – 16 conductors in a single ribbon cable
• Priced per metre – you decide the length
• Flat profile – easily routed along or beneath the baseboard
• Tidy – bundled conductors keep your installation neat

Applications

• Connection between the OC32/NG and points or signals
• Wiring feedback sensors to the control unit
• Linking amplifiers and multiplexers
• Permanent wiring beneath the baseboard

Installation

1. Step 1 – Work out the length required and cut the cable to size.
2. Step 2 – Fit a ribbon cable connector with strain relief at each end.
3. Step 3 – Route the cable along or beneath the baseboard to the connection points.
4. Step 4 – Check the conductor orientation and test the connection.

Specifications

• ✓ Ribbon cable with 16 ways
• ✓ Priced per metre
• ✓ For control and feedback wiring
• ✓ Weight: 30 grammes per metre

Perfect for

• Builders of larger layouts with many points and signals
• Anyone keeping order in the wiring beneath the baseboard
• OC32/NG users linking many outputs

Benefits

• Clarity – one cable instead of 16 separate wires
• Made to length – supplied by the metre
• Quick – connect with connectors rather than soldering
• Reliable – fewer loose joints means fewer faults

MCC Quality Guarantee

• Extensively tested and reliable
• Professional technical support
• Clear instructions and documentation
• Fast delivery
• Full guarantee on your investment

Combine with other MCC products

• Ribbon cable connector 16 – male and female versions with strain relief
• OC32/NG – multifunctional decoder with 32 outputs
• PFH – H-bridge amplifier for matrix points control
• SHdec / SWdec – feedback modules
• Multiplexers – additional outputs for the OC32/NG

One cable, 16 connections: order beneath your baseboard.
